The P410 is an electronically controlled continuously variable transmission designed specifically for Toyota’s high-torque hybrid systems. Key features include:
• Planetary gearset (Power Split Device) — no belts or chains to slip or snap
• Dual high-output motor-generators (MG1 & MG2)
• Fully integrated with the Toyota Hybrid Synergy Drive (HSD)
• Paired with the 2AR-FXE 2.5 L Atkinson Cycle engine

Important: This is not a conventional CVT. Drive ratios are varied electronically via the interaction of the planetary gears and motor control, eliminating the friction-based wear found in standard automatic transmissions.

The P410 manages power flow through a complex balancing act:
• The engine, MG1, and MG2 are permanently linked via the planetary gearset.
• MG2 provides instant launch torque and high-speed electric cruising.
• MG1 controls the engine speed electronically and acts as a starter and generator.
• Regenerative braking is integrated directly into the transmission torque path.
• Because there are no physical gear changes, the driving experience is exceptionally smooth.

While the P410 is globally recognized for reliability, high-mileage units (typically 250,000 km+) may exhibit:
• Bearing Noise: A distinct whining or humming that changes with vehicle speed.
• Hybrid Warning Lights: Often triggered by internal temperature sensors.
• Motor-Generator Faults: Electrical isolation issues within MG1 or MG2.
• Inverter Cooling Issues: Related to the transmission’s thermal management circuit.
• Fluid Contamination: Breakdown of the WS-grade fluid due to extreme thermal cycles.

Hybrid Fix Garage follows a specialist diagnostic protocol:
• Toyota-level scan tool diagnostics (Techstream) to read specific transmission ECUs.
• Hybrid system integration check to ensure the inverter is delivering correct voltage.
• Transmission fluid inspection to check for metallic debris or burnt odor.
• Live data monitoring of MG1/MG2 temperatures and RPM.
• ECU/TCM adaptation reset to ensure smooth software-mechanical synchronization.

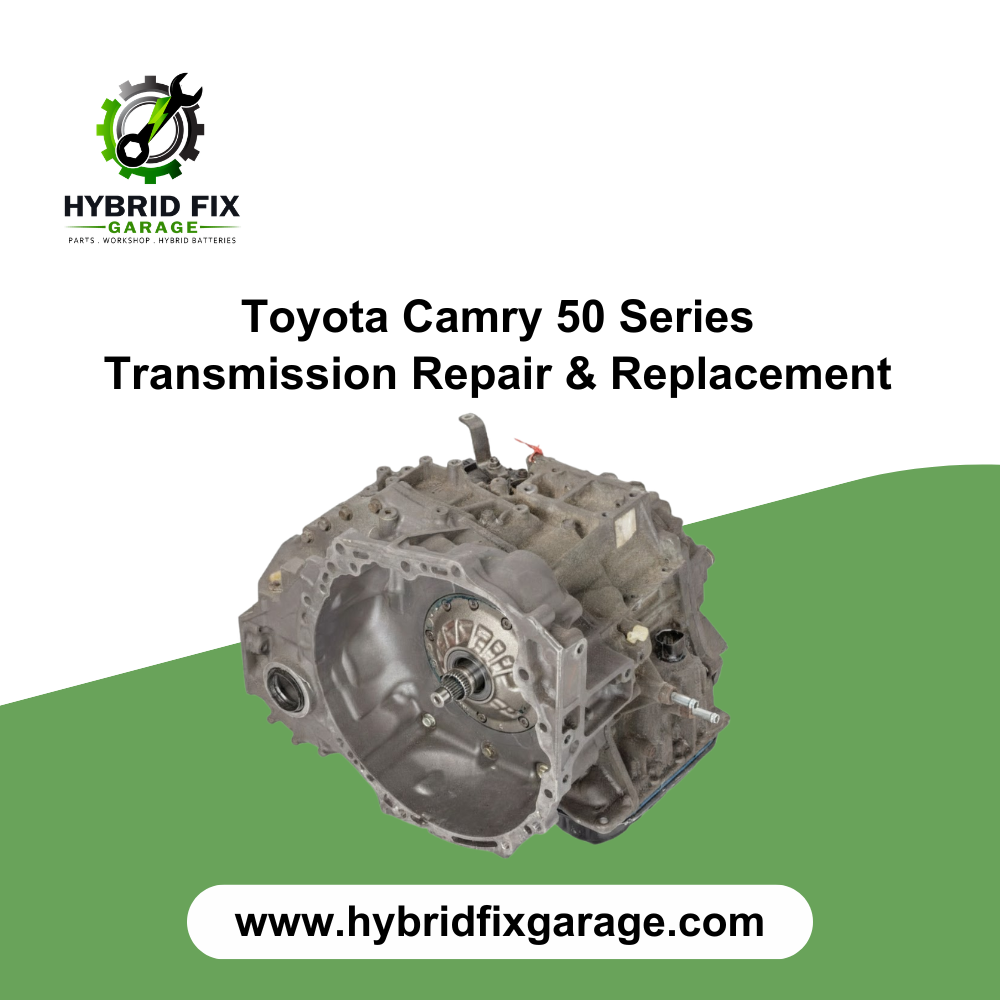

Hybrid e-CVT Replacement:
Installation of low-km OEM assemblies followed by full hybrid ECU synchronization and inverter system testing. All replacements include a comprehensive verification of the hybrid drivetrain integration.

Estimated Reference Pricing:
• P410 Hybrid e-CVT Replacement: From $800
(Final cost depends on VIN verification and current parts availability.)

Hybrid Fix Garage:
Specialized expertise in e-CVT planetary systems. We use Toyota-specific diagnostics and perform ECU adaptation and fluid calibration as standard.

General Mechanic:
Often misdiagnose e-CVT issues as standard transmission failures. May lack the tools to perform the required electronic resets after a component swap.

Delaying transmission inspection can lead to:
• Permanent damage to the high-voltage motor-generators.
• Significant reduction in fuel economy as the hybrid system struggles to manage power.
• Inverter overheating due to increased internal transmission friction.
• Sudden vehicle shutdown if a “High Voltage Leak” is detected within the transmission.

Compatibility: Toyota Camry 50 Series Hybrid (2011–2017)
Chassis Code: AVV50R
Transmission Model: P410 e-CVT
Fluid Type: Toyota ATF WS (World Standard)

• Full Parts and Labour warranty
• Hybrid system integration and calibration check
• No hidden programming or coding charges
• Transparent written diagnostic report

Is this the same as a CVT with a belt?
No. The P410 uses a Power Split Device (planetary gears) that is much more durable than the belt-and-pulley systems used in non-hybrid vehicles.

How often should the fluid be changed?
While often labeled “lifetime” by manufacturers, we recommend inspection or replacement every 80,000–100,000 km to protect the internal motor-generator windings.

Does a replacement require programming?
Yes. The vehicle’s Hybrid Control ECU must be synchronized with the replacement unit to ensure optimal performance and safety.
