This service applies to:
• Toyota Camry 70 Series (XV70 Hybrid)
• Model Years: 2018 – 2021
• Hybrid Synergy Drive Braking System
• Engine: 2.5 L A25A-FXS Hybrid Powertrain

VIN check is highly recommended to ensure correct ABS module compatibility, as part numbers vary by trim and safety sensor suites.

The ABS (Anti-Lock Braking System) pump and module assembly in the XV70 is a sophisticated “brake-by-wire” component that:
• Prevents wheel lock-up under emergency braking conditions
• Balances hydraulic pressure across all four wheels via high-speed solenoid valves
• Interfaces directly with Vehicle Stability Control (VSC) and Traction Control (TRAC)
• Manages “Brake Blending”—the seamless transition between electric motor resistance (regeneration) and hydraulic friction
• Supports Active Safety Systems like Pre-Collision Braking and Adaptive Cruise Control

A failing ABS unit in the Camry 70 Series compromises both mechanical safety and hybrid system efficiency.

Watch for these specific indicators in your Camry Hybrid:
• ABS, VSC, or TRAC warning lights illuminated on the multi-information display
• “Brake Malfunction” or “Check Braking System” messages
• Grinding or buzzing noises from the engine bay during startup or braking
• Unstable or pulsing brake pedal feel under normal stopping conditions
• Reduced effectiveness of regenerative braking (the “Charge” needle on the dash stays lower than usual)
• Fault codes such as C12xx or C13xx stored in the Brake ECU

Hybrid Fix Garage utilizes a comprehensive replacement protocol for the 70 Series:
• System Diagnosis: Full scan of the Skid Control ECU and Hybrid Control modules.
• Safe Extraction: Removal of the faulty hydraulic actuator/module assembly.
• OEM Installation: Fitment of the correct replacement unit (e.g., OEM 47070-33070).
• Electronic Bleeding: A specialized automated sequence to remove air from the ABS pump and lines.
• ECU Coding: Initializing the new module to recognize the vehicle’s specific VIN and sensor calibration.
• Verification: Zero-point calibration and a high-speed road test to verify ADAS and VSC integration.

Hybrid Fix Garage:
Elite hybrid-specific expertise including ECU calibration and electronic bleeding as standard. Offers full part and labour warranties with transparent pricing.

General Mechanic:
Often limited in hybrid braking experience. May skip the essential electronic bleeding or calibration steps, leading to soft pedals or persistent fault codes.

Dealership:
High level of expertise but often carries a significantly higher price point due to fixed corporate overheads and OEM markups.

The ABS system is your primary defense in an emergency. Driving with a faulty module can result in:
• Loss of anti-lock functionality, leading to dangerous skids
• Deactivation of stability control and emergency autonomous braking
• Increased stopping distances, especially on wet or uneven surfaces
• Potential strain on the hybrid inverter if regenerative braking is not calibrated correctly

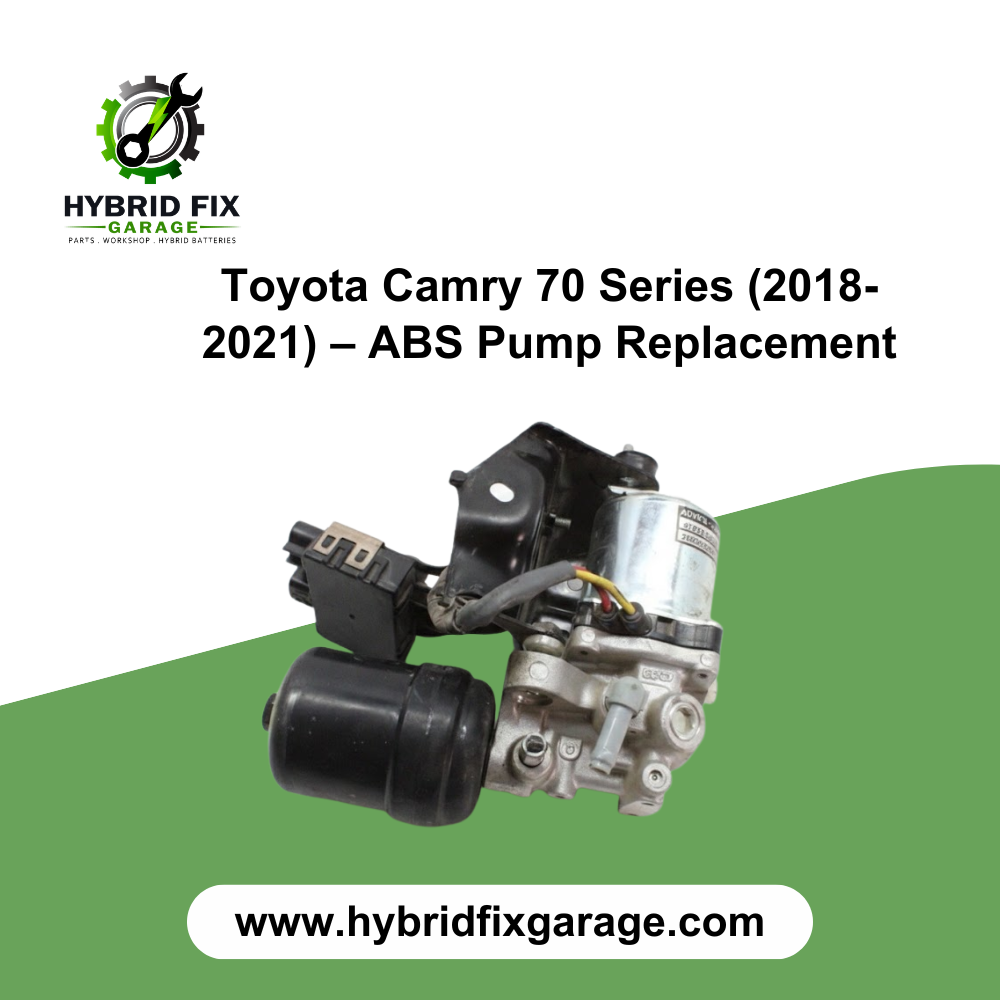

ABS pump units for Camry 70 Series Hybrids commonly use OEM part numbers such as 47070-33070 or 47070-47090. Compatibility is highly dependent on the vehicle’s production date and chassis configuration.

Estimated Reference Pricing:
• ABS Hydraulic Pump/Actuator: From $500
• Master Cylinder Assembly: From $1,500
(Accurate pricing requires VIN verification.)

• Full Parts & Labour Warranty Included
• System Calibration Guaranteed
• Transparent Invoicing with No Hidden Fees
• Post-Installation Diagnostic Report Provided

Can I install this unit myself?
No. The 70 Series Hybrid braking system requires a pressurized electronic bleed and ECU initialization that can only be performed with specialized diagnostic software.

Is the master cylinder the same as the ABS pump?
In the XV70, these are often separate but interconnected components. A diagnostic scan is required to determine which unit is failing.

How long does the replacement take?
The process typically takes 3–5 hours to ensure all air is purged and the software is correctly calibrated.
