The 70 Series Camry (XV70 chassis) represents a significant leap in hybrid engineering:
• Production: 2018 – Present (Australia & Global Markets)
• Platform: Toyota New Global Architecture (TNGA-K)
• Available in hybrid configurations for this specialized engine service.

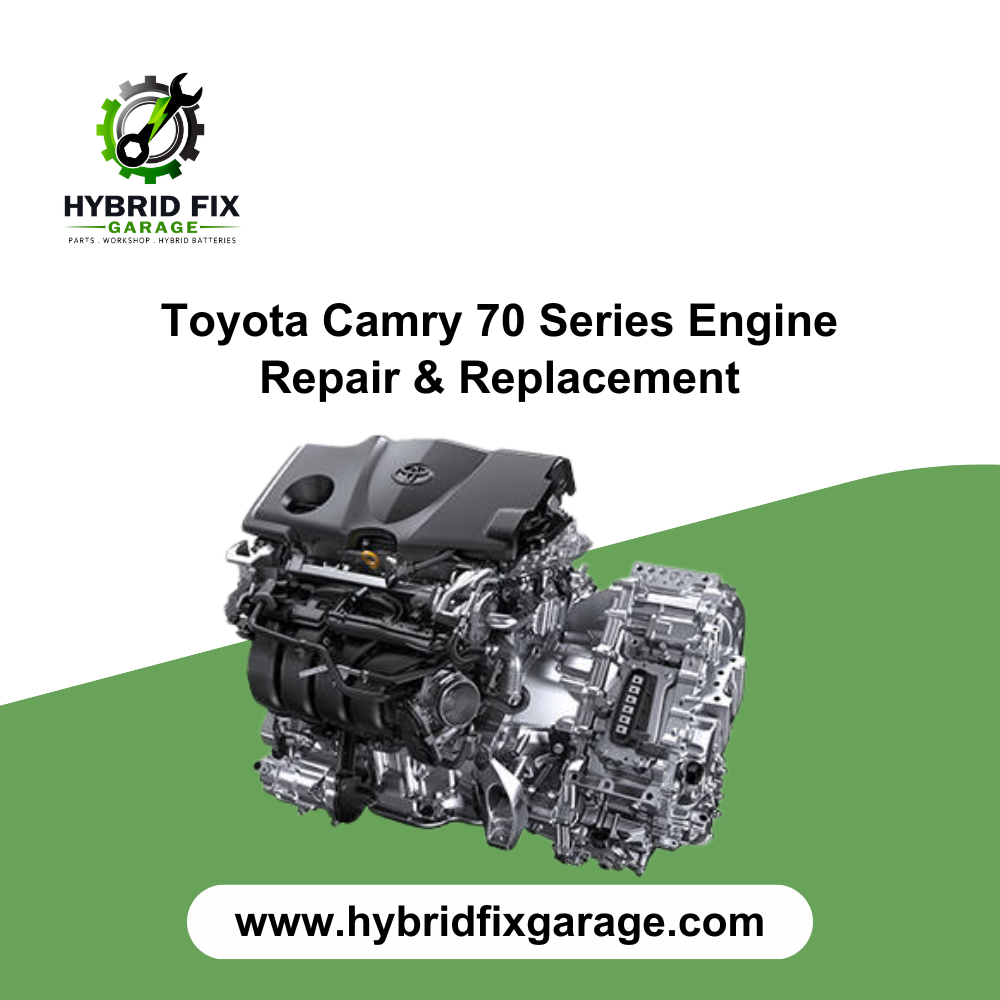

A25A-FXS (Dynamic Force Hybrid Engine)
• 2.5 L Inline 4-cylinder
• DOHC, 16-valve with Atkinson Cycle configuration
• Dual VVT-iE (Electric motor-driven) & VVT-i
• D-4S Injection System (Direct and Port injection)
• Ultra-high Compression Ratio: 14.0:1
• Engine Output Alone: approx. 131 kW
• Combined System Output (Engine + Motor): approx. 160 kW

The XV70 engine features several technological advancements:
• Increased compression ratio for higher thermal efficiency
• Improved combustion chamber geometry for faster flame speed
• Fully electric water pump (no drive belt)
• Variable cooling system for faster warm-up cycles
• Reduced internal friction and lightweight TNGA engine mounting

Result: More power, improved fuel economy (L/100km), and significantly lower emissions.

Despite high reliability, watch for these specific issues in higher-mileage units:
• Electric Coolant Pump Failure: Can trigger sudden overheating warnings.
• Carbon Build-Up: Intake valve deposits due to the D-4S system variables.
• EGR System Restriction: Reduced efficiency and potential rough idling.
• Engine Mount Wear: TNGA mounts can develop vibrations under load over time.

Hybrid Fix Garage utilizes a specialized TNGA-specific diagnostic protocol:
• Full Toyota-specific scan tool analysis (Techstream level)
• Live data stream monitoring of VVT-iE and injection timing
• Compression and leak-down testing for high-compression cylinders
• Cooling system pressure and electric pump duty-cycle testing
• Fuel pressure validation for the D-4S high-pressure system
• Hybrid system integration diagnostics and ECU recalibration

Engine Repairs: Gasket replacement, cooling system overhaul, and D-4S fuel system service.
Cylinder Head Reconditioning: Pressure testing, valve grinding, and precision surface machining.
Engine Rebuild: Complete overhaul including piston rings, bearings, and timing components.
Engine Replacement: Installation of new OEM, low-km used, or reconditioned long motors with full ECU configuration.

Hybrid Fix Garage:
Expertise in TNGA engines and Dynamic Force architecture. We include hybrid system calibration and D-4S injection diagnostics as part of the standard service.

General Mechanic:
Often lack the specialized knowledge for electric VVT-iE systems and may skip the essential hybrid integration steps required for the XV70 platform.

Ignoring early symptoms on the XV70 can lead to:
• Head gasket failure due to electric pump malfunctions
• Damage to the sophisticated hybrid motor-generator units
• Catalytic converter failure from improper D-4S combustion
• Full engine replacement necessity costing thousands more than early repair

Compatibility: Toyota Camry 70 Series Hybrid (2018–2024)
Chassis Code: AXVH70R
Engine Code: A25A-FXS
Transmission: P710 e-CVT

• Detailed written diagnostic and repair reports
• Comprehensive Parts and Labour warranty
• Hybrid integration and software calibration guarantee
• Transparent pricing with no hidden coding fees

Does the A25A-FXS engine have a timing belt?
No, it uses a timing chain designed for the life of the engine, though tensioners should be inspected at high mileages.

What is D-4S injection?
It is a dual-injection system that uses both port and direct injection to optimize power and efficiency across different RPM ranges.

How long does a full engine replacement take?
Typically 5–7 business days, including full system integration and road testing.
